Engine type
Single-cylinder, DOHC, 4-valve, 4-stroke
Max. Power
41/12500 HP/rpm
Max. Torque
27/9500 N.m/rpm
Displacement (cc)
249.9
Bore × Stroke (mm)
79 × 51
Compression Ratio
13.9:1
Fuel delivery
BOSCH™ EFI(Dual Fuel Injector)
Clutch Type
Wet multi-plate slipper Hydraulic clutch
Newly designed air intake system, dive-type intake duct, compression ratio as high as 13.9, improved combustion, strong high-speed power while taking into account low-speed torque.
Equipped with Bosch EFI and dual fuel injector system, it delivers smoother and more controllable power output.
Finger-shaped DLC rocker arm structure, titanium alloy valve + elliptical valve spring, speed up to 14000r/min, lightweight valve structure, cylinder eccentric technology, reduce power loss, longer life, strong power.
Lightweight two-ring piston forged piston, multi-curved irregular piston top combustion chamber, piston multi-point injection forced back cooling technology, DLC coated piston pin, and various technologies to lightweight the piston structure, thereby reducing the piston reciprocating inertia and improving power response.
All parts are lightweight, the power-to-weight ratio is as high as 1.14, and the power performance of the bike is improved.
We dedicated ourselves to a tiny pursuit: repeated testing, verification, revision and refinement, merely to cut off every single gram from the vehicle. The accumulation of countless grams brings the dry weight down to 105 kg. It is never just about being light, but being lightweight yet tough enough.
Both front and rear suspension adopt top-grade KYB specifications with precise matching. It has passed 240 hours of continuous rigorous testing to ensure outstanding durability under intense racing conditions.
Equipped with 22mm triple clamp offset design, balancing agile steering and front wheel stability.
It supports practical functions including power mode adjustment, launch control, quick shift and lap time recording.

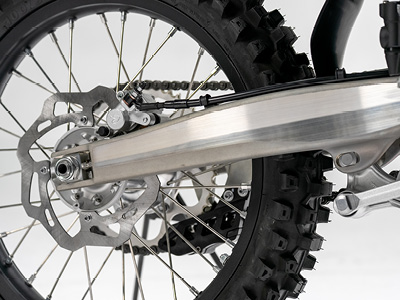

Lightweight aluminium swingarm and premium 7075 aluminium wheel rims enhance handling, strength, and durability.

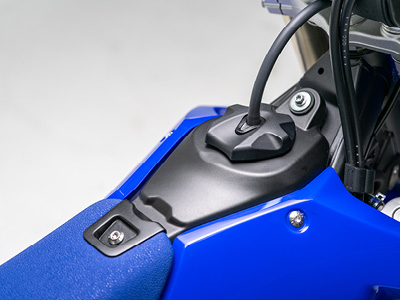

Durable 6.5L rotomoulded fuel tank provides reliable performance and excellent impact resistance.

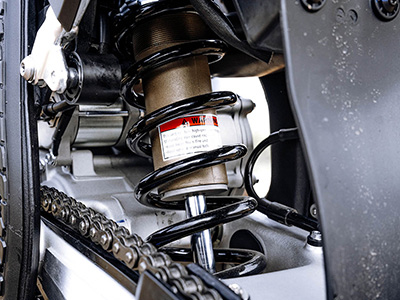

KYB external air-charged fully adjustable rear suspension with 302mm travel for control and comfort for off-road performance.

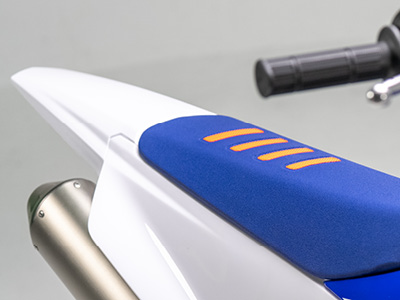

Ergonomic narrow seat design for better control and agility on the bike.

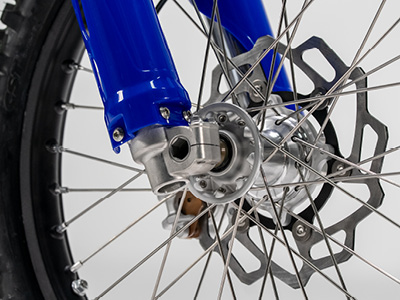

Lightweight aluminium alloy axle helps reduce the overall bike weight while offering excellent durability and corrosion resistance for long-lasting performance.

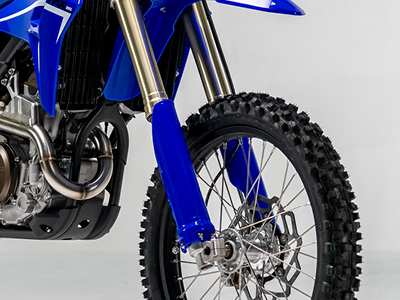

KYB dual-chamber fully adjustable suspension with 48mm tapered fork tubes and 305mm travel for precise control and confident handling.
